Closed, but never hidden.

The YQ Clear Vision shutter combines slim-line aluminium rods with clear polycarbonate slats. It keeps your premises secure and your displays visible from either side.

Panels: 335 × 85 mm PC
Thickness: 2 mm
Motorised: up to 6 × 5 m
Visibility: Both sides

Get a Free Quote Call Us

A solid shutter makes a mall unit look shut down. The polycarbonate roller shutter was designed to create a transparent, bright and open look, even when the unit is locked.

It is typically used for shopfronts, shopping malls, serving counters and display units, anywhere your brand and products should stay on view after hours.

Applications

Shop fronts
Shopping malls
Serving counters
Display units

See solutions for your building type

Technical Specifications

Polycarbonate Roller Shutter specification
Size	Manual: each shutter up to 9 m² total. Motorised: up to 6 m W × 5 m H.

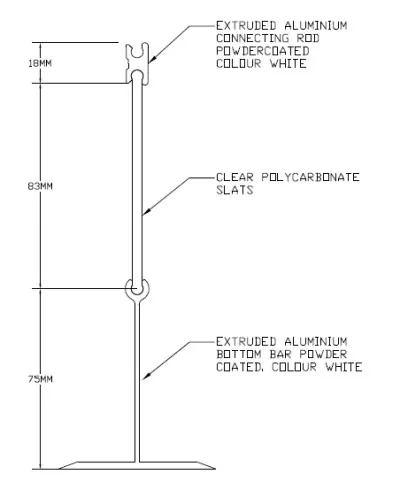

Curtain	Interlocking 18 mm / 23 mm extruded aluminium connecting rods with 335 × 85 mm, 2 mm-thick polycarbonate slats, held by Allen-key machine screws.
Bottom bar	‘T’-shaped extruded aluminium profile, 63 mm W × 75 mm H.

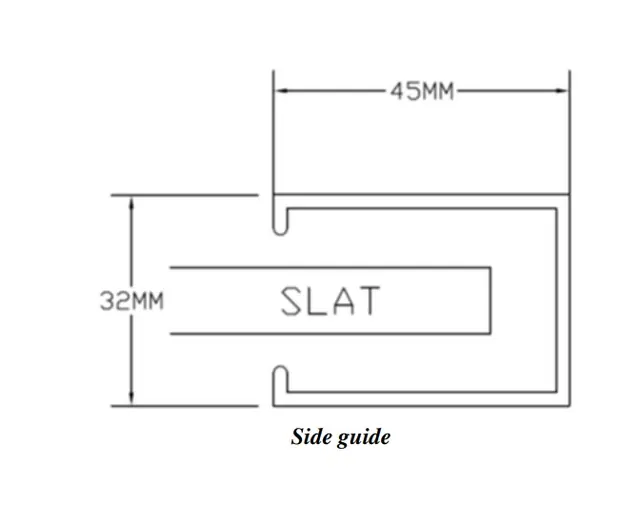

Side guide	Extruded aluminium section, 45 mm deep × 32 mm wide.

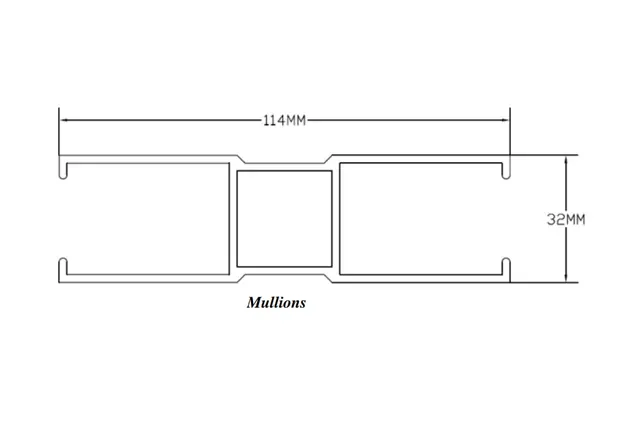

Mullions	Standard 180° mullions in extruded aluminium, 114 × 32 mm. These can be the lift-out type with shoot bolts at the base. Special mullions for any angle can be fabricated from aluminium hollow sections fixed to the standard side guides.
Locking	The handle-bar slat houses a keyed centre or side lock. It drives an aluminium ‘C’ channel into the side guides on both sides of the opening. The lock works from both inside and outside, and multiple shutters can be keyed alike.
Sub-assembly	145 mm mild-steel wheels with fully enclosed ball bearings rotate around a 25 mm steel shaft. Helical coil springs counter-balance the curtain weight through its full travel.
Operation	Manual: push up and pull down with the supplied handle pole. For openings over 4 m high, a chain block or planetary gear system can be fitted to one end to help. Motorised: push button, remote control or key switch.
Finish	Natural anodised as standard. Colour powder coating is optional, in the Oxyplus powder-coat range.
