Product 04
Built for openings that never rest.
Our electrically operated heavy-duty colourbond steel roller shutter gives high-strength security and is easy to operate. It is built for loading docks, workshops, warehouses, car parks and storage buildings.
- Slats
- 100 mm · 1.0 mm
- Motor
- N-series planetary
- Safety
- Wireless safety edge
- Radio
- 346.5 MHz
Industrial doors open and close dozens of times a day, so a failure costs real money. The curtain is made of individual interlocking slats. If it gets damaged, only the affected slats need replacing, which keeps repairs economical.
The N-series operator uses a double-row planetary gear system and a heavy-duty clutch and brake assembly. A wireless safety system in the bottom bar stops the door when it meets an obstruction.
Applications
- Small counter tops
- Loading docks
- Workshops
- Warehouses
- Car parks
- Storage buildings
Technical Specifications
| Curtain | Colourbond steel cold-rolled into interlocking slats with a 100 mm profile, in sections 1.0 mm thick. |
|---|---|

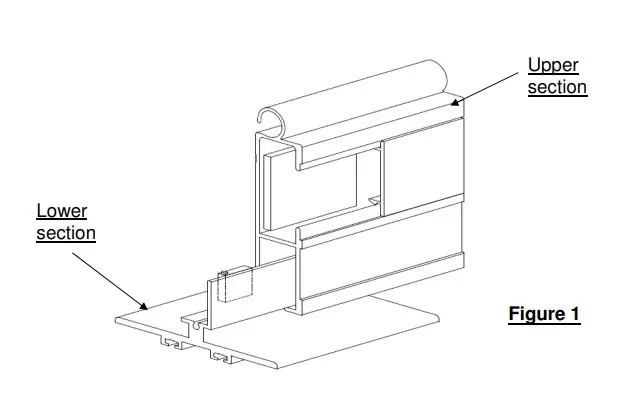

| Bottom bar (Fig. 1) | Extruded aluminium in two portions. The upper portion houses the wireless safety device and an access cover for troubleshooting and battery replacement. The lower portion holds limit switches that trigger the safety device on contact, plus two slots for a PVC weather-seal strip. |

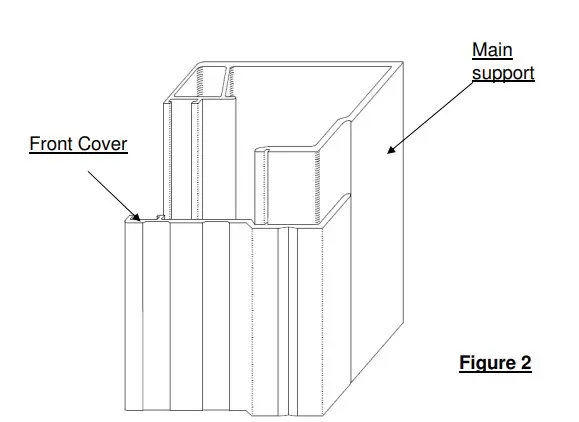

| Side guide (Fig. 2) | A reinforced extruded-aluminium guide in two parts, a main support fixed to the wall or hollow section and a front cover, for easier installation and maintenance. |

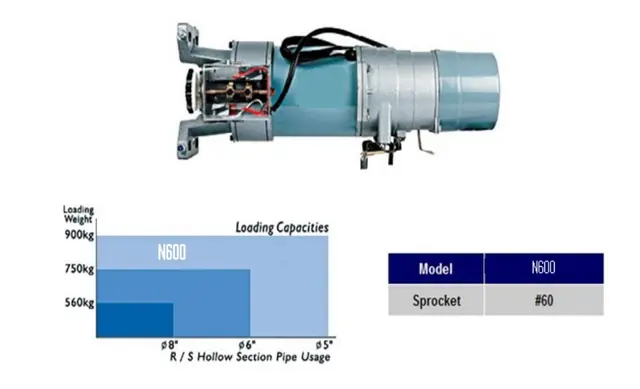

| Motorised operation | N-series operator with a double-row planetary gear system that spreads torque evenly, giving smooth, low-resistance power transmission and a longer service life. It has a matching heavy-duty clutch/brake assembly. Highly recommended for large industrial roller shutters. |

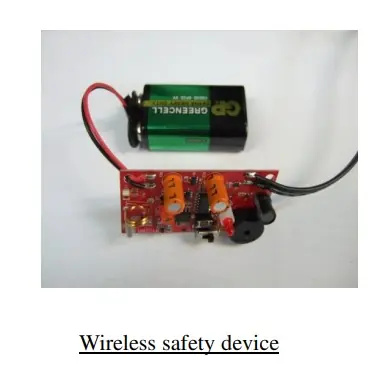

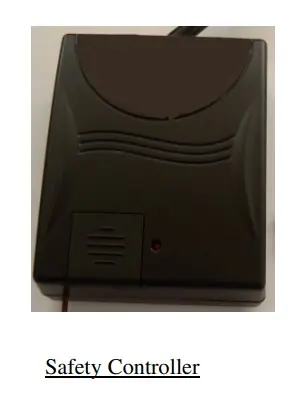

| Safety system | The safety controller links directly to the motor operator. The wireless safety device is connected to the limit switches and signals the controller when an obstruction is detected. |
| Low-battery warning | When the safety device battery is weak, it sounds a warning, the controller indicator blinks and operation switches to semi-auto. |
| Radio frequency | 346.5 MHz |
| Maximum size | To be confirmed on site |
Specifications are from our product documentation. Final sizes and options are confirmed after site measurement.
Technical Drawings & Components
Click a drawing to enlarge it.

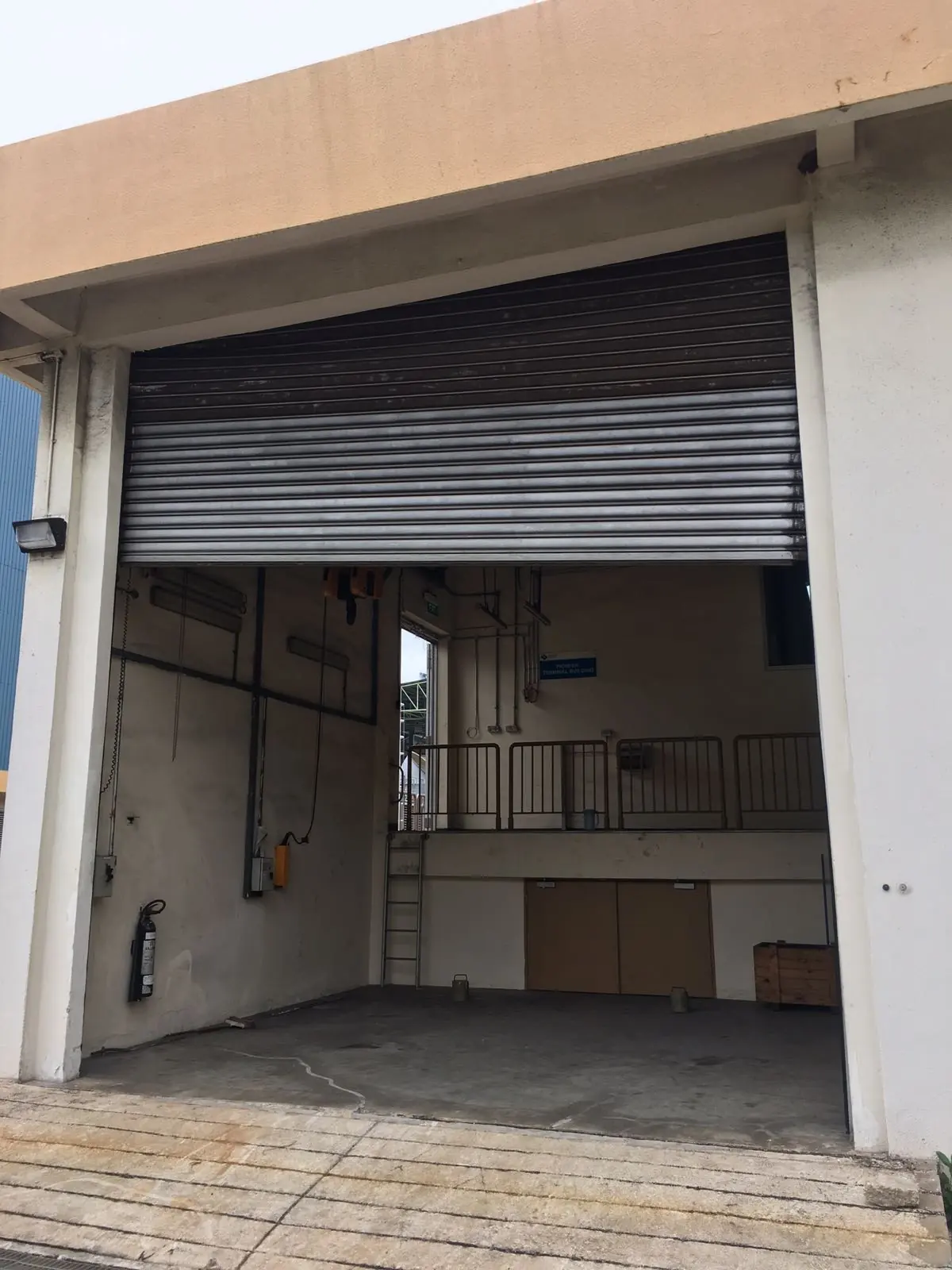

Project Gallery
