A complete door system, not just a curtain.

Our roller door is faster, quieter and easier to maintain. Its colourful, modern style suits shops and garages. The control box has a built-in intelligent device that adds safety, security and more functions.

Drive: High speed · low noise
Control: DC24V
Safety: Obstruction detection
Panel: Zincalume steel

Get a Free Quote Call Us

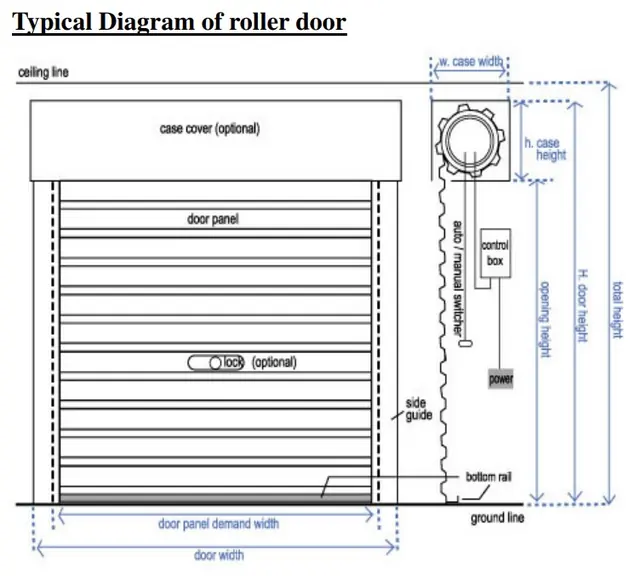

The drive unit, door shaft, control panel and door panel are specified to work together. The drive switches easily to manual mode in a power failure, and a hand chain lets you open the door fully in an emergency.

The door shaft uses a specific combination of springs and nylon pulleys to balance the load, so the motor is not doing all the work.

Applications

Commercial shops
Garages
Bin centres & service rooms
Store rooms

See solutions for your building type

Technical Specifications

Roller Door specification

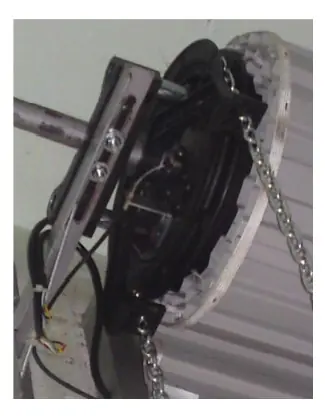

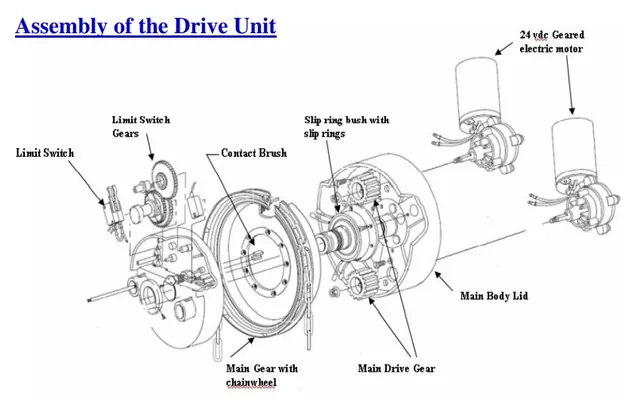

Drive unit	High speed with low noise. Switches easily to manual mode during a power failure. A hand chain allows the door to be opened fully in an emergency.

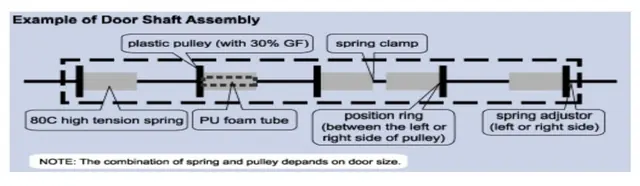

Door shaft assembly	A specific combination of springs and nylon pulleys gives a balanced load.

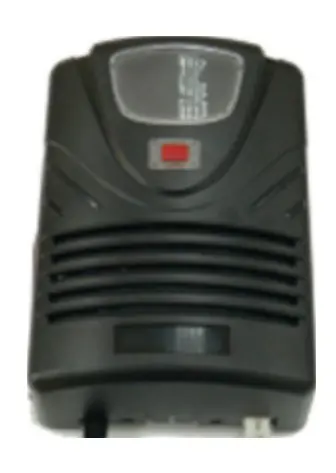

Control panel	DC24V low-voltage operator, quiet and safe. Auto obstruction detection. Floor-lever manual release. Auto-close enabling delay.
Accessory options	Alarm, battery back-up, counter.

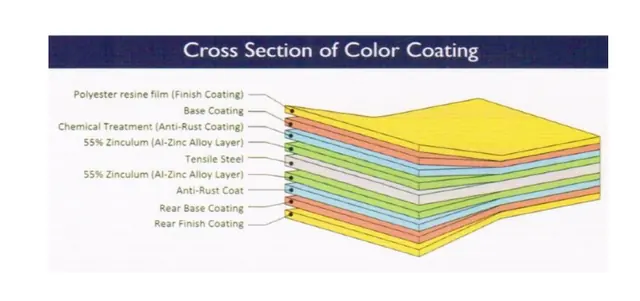

Door panel	One-piece cold-rolled door panel in high-quality coloured Zincalume-coated steel.
Panel properties	Anti-stress steel plate. Heat-immersion treatment of the bottom layer resists acids, alkali and corrosion. Tensile strength 432 N/mm². Highly reflective against heat, with excellent paint adhesion and long-lasting colours.
Maximum size	To be confirmed on site
